Hajmi: M1.4-M100

Yuzaki: ZP / BLACK

Sinf: 4.8 / 8.8 / 10.9 / 12.9

Materiallar: Zanglamaydigan po'lat, po'lat

d	M1.4	M1.6	M2	M2.5	M3	M4	M5	M6	M8	M10	M12	(M14)	M16	(M18)
p	0.3	0.35	0.4	0.45	0.5	0.7	0.8	1	1.25	1.5	1.75	2	2	2.5
	-	-	-	-	-	-	-	-	1	1.25	1.25	1.5	1.5	1.5
	-	-	-	-	-	-	-	-	-	1	1.5	-	-	2
b	14	15	16	17	18	20	22	24	28	32	36	40	44	48
dk	2.6	3	3.8	4.5	5.5	7	8.5	10	13	16	18	21	24	27
	2.74	3.14	3.98	4.68	5.68	6.78	8.28	9.78	12.73	15.73	17.73	15.7	17.7	20.2
	2.46	2.86	3.62	4.32	5.32	6.78	8.28	9.78	12.73	15.73	17.73	20.67	23.67	26.6
da	1.8	2	2.6	3.1	3.6	4.7	5.7	6.8	9.2	11.2	13.7	15.7	17.7	20.2
ds	1.4	1.6	2	2.5	3	4	5	6	8	10	12	14	16	18
ds	1.26	1.46	1.86	2.36	2.86	3.82	4.82	5.82	7.78	9.78	11.73	13.73	15.73	17.7
e	1.5	1.73	1.73	2.3	2.87	3.44	4.58	5.72	6.86	9.15	11.43	13.72	16	16
k	1.4	1.6	2	2.5	3	4	5	6	8	10	12	14	16	18
k	1.26	1.46	1.86	2.36	2.86	3.82	4.82	5.7	7.64	9.64	11.57	13.57	15.57	17.5
s	1.3	1.5	1.5	2	2.5	3	4	5	6	8	10	12	14	14
	1.32	1.52	1.52	2.02	2.52	3.02	4.02	5.02	6.02	8.025	10.025	12.032	14.032	14.03
	1.36	1.56	1.56	2.06	2.58	3.08	4.095	5.14	6.14	8.175	10.175	12.212	14.212	14.21
t	0.6	0.7	1	1.1	1.3	2	2.5	3	4	5	6	7	8	9
w	0.5	0.55	0.55	0.85	1.15	1.4	1.9	2.3	3	4	4.8	5.8	6.8	7.8

d	(M22)	M24	(M27)	M30	(M33)	M36	M42	M48	M56	M64	M72	M80	M90	M100
p	2.5	3	3	3.5	3.5	4	4.5	5	6.5	6	6	6	6	6
	1.5	2	2	2	2	3	3	3	4	4	4	4	4	4
	2	-	-	-	-	-	-	-	-	-	-	-	-	-
b	56	60	66	72	78	84	96	108	124	140	156	172	192	212
dk	33	36	40	45	50	54	63	72	84	96	108	120	135	150
	33.39	36.39	40.39	45.39	50.39	54.46	63.46	72.46	84.54	96.54	108.54	120.54	135.63	150.63
	32.61	35.61	39.61	44.61	49.61	53.54	62.54	71.54	83.46	95.46	107.46	119.46	134.37	149.37
da	24.4	26.4	30.4	33.4	36.4	39.4	45.5	52.6	63	71	79	87	97	107
ds	22	24	27	30	33	36	42	48	56	64	72	80	90	100
ds	21.67	23.67	26.67	29.67	32.61	35.61	41.61	47.61	55.54	63.54	71.54	79.54	89.46	99.46
e	19.44	21.73	21.73	25.15	27.43	30.85	36.57	41.13	46.83	52.53	62.81	74.21	85.61	97.04
k	22	24	27	30	33	36	42	48	56	64	72	80	90	100
k	21.48	23.48	26.48	29.48	32.38	35.38	41.38	47.38	56.26	63.26	71.26	79.26	89.13	99.13
s	17	19	19	22	24	27	32	36	41	46	55	65	75	85
	17.05	19.065	19.065	22.065	24.065	27.065	32.08	36.08	41.08	46.08	55.1	65.1	75.1	85.12
	17.23	19.275	19.275	22.275	24.275	27.275	32.33	36.33	41.33	46.33	55.4	65.4	75.4	85.47
t	11	12	13.5	15.5	18	19	24	28	34	38	43	48	54	60
w	9.4	10.4	11.9	13.1	13.5	15.3	16.3	17.5	19	22	25	27	32	34

Asosiy parametrlar:

Qattiqligicha:

Olti burchakli rozetkalar vintli simning qattiqligi, tortishish kuchi, oqim kuchi va boshqalarga qarab tasniflanadi, bu olti burchakli rozetkaning murvatining darajasi va olti burchakli murvatning qaysi navi. Turli xil mahsulot materiallari ularga mos kelishi uchun olti burchakli rozetkalarning turli navlarini talab qiladi.

Olti burchakli murvatlarning quyidagi navlari bor:

Olti burchakli rozetkalarning murvatlari sinf kuchiga ko'ra oddiy va yuqori quvvatga bo'linadi. Oddiy olti burchakli rozetkalarning murvatlari 4.8 darajaga, yuqori kuchga ega olti burchakli rozetkalarning murvatlari 8.8 dan yuqori darajalarga, shu jumladan 10.9 va 12.9 darajalariga tegishlidir.

Hunarmandchilik jarayoni:

1. Talablarga binoan ichki olti burchakning qarama-qarshi tomonining diametri bo'yicha teshiklarni burang.

2. Ichki olti burchakni sovuq sarlavha mashinasi bilan buzish.

3. Bitta bo'lakni olti burchakli musht bilan urish mumkin.

Weclom biz bilan bog'lanish va fabrikamizga tashrif buyurish uchun!

TSS:

Savol: etkazib berish muddati qancha?

Javob: Odatda 15-20 kun. Buyurtma miqdoriga bog'liq.

Savol: Qaysi transport turi yaxshiroq bo'lar edi?

Javob: Umuman olganda, mahsulot og'ir, dengiz orqali yaxshiroq, boshqa transport sizning talabingizga binoan qabul qilinadi.

Savol: Sifatni qanday kafolatlashimiz mumkin?

Javob: Ommaviy ishlab chiqarishdan oldin har doim ishlab chiqarishdan oldin namuna; jo'natishdan oldin har doim yakuniy tekshirish;

Issiq teglar: din912 allen bolt, Xitoy, etkazib beruvchilar, fabrika, moslashtirilgan, ulgurji savdo, chegirma, kotirovka, arzon narx, stokda, bepul namuna

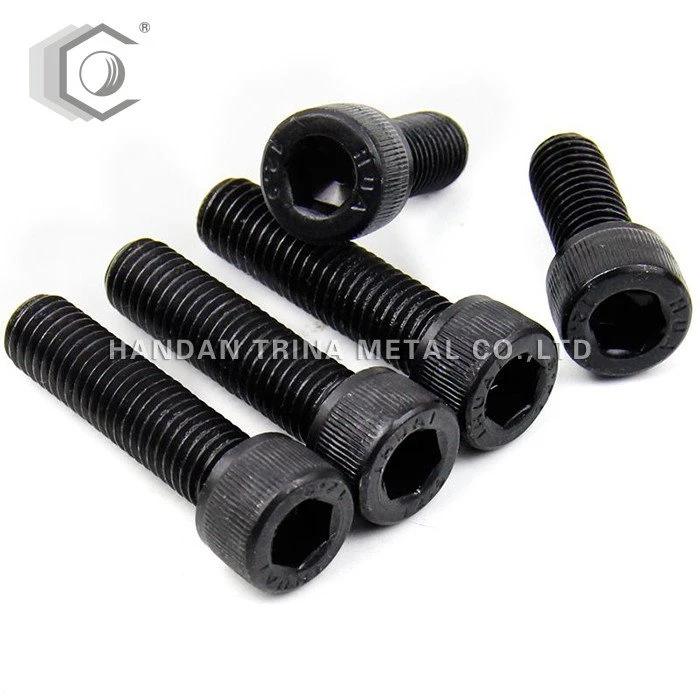

DIN912 Allen Bolt
